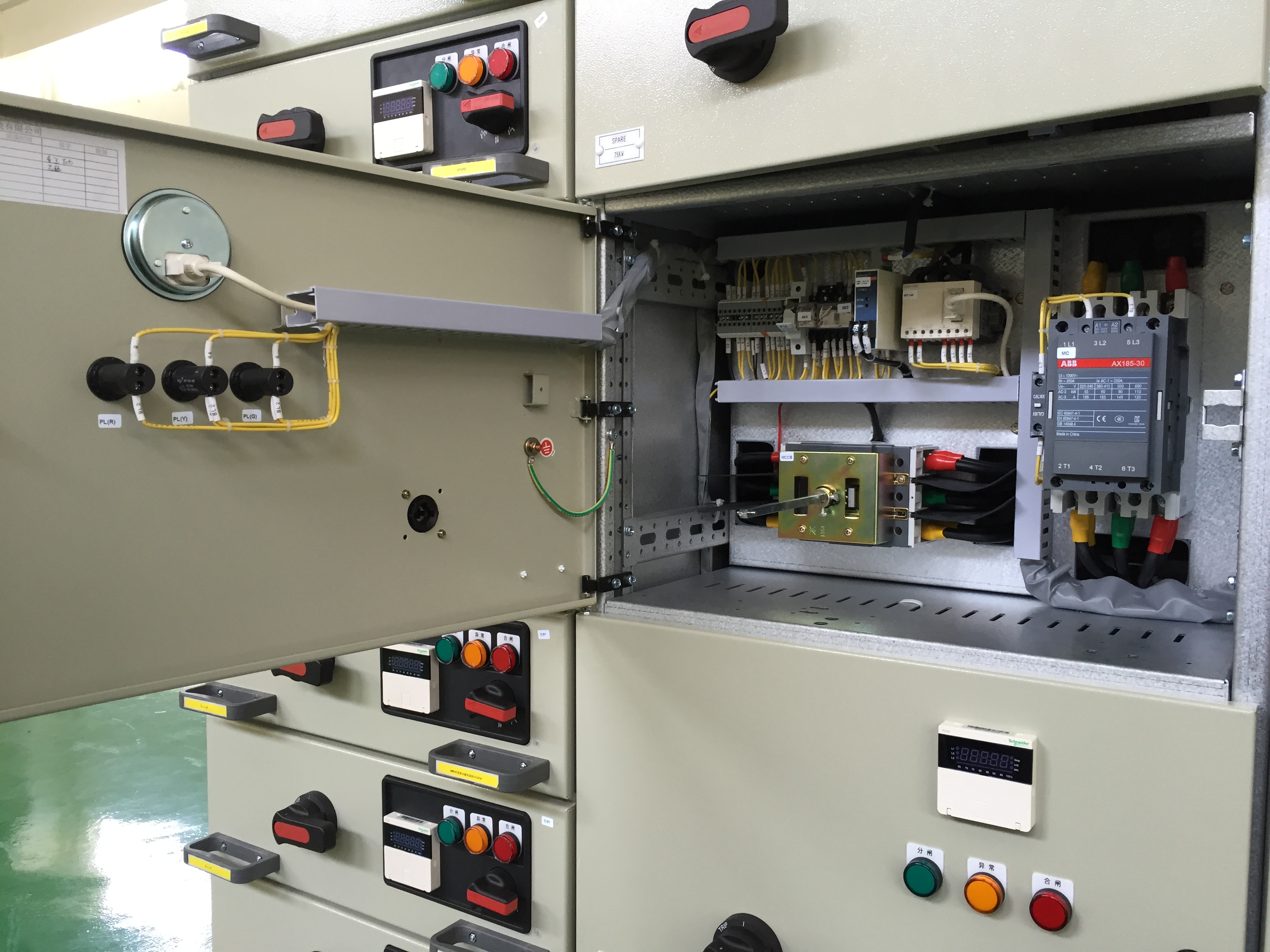

MNS low voltage extractable switchgear

MNS low voltage drawer type switchgear is suitable for electric power conversion, distribution and control of power distribution system of 50 ~ 60Hz, rated voltage 690V or less. It is mainly applied to airports, power plants, substations, petrochemical industry, metallurgical steel, transportation and energy, light industry and textile enterprises and residential areas, high-rise buildings and other places. This switchgear meets IEC439, GB7251 national standards and professional standards. The standard module is designed: the standard units, such as protection, operation, conversion, control, regulation, measurement and indication, can be formed respectively.

◇main features:

●The frame of the switch cabinet is assembled and assembled, and the basic frame is made up of C type steel.

●In smaller space, more functional units can be accommodated, and the design is compact.

●The switchgear compartment can be divided into functional units, a bus chamber, a cable chamber, the unit's function is relatively independent, and between regions separated from each other by a metal plate or high strength plastic board, the upper and lower drawer with a metal plate with a ventilation hole isolation, ensure safety and prevent the spread of the accident.

●Using the standard module to design the structure is versatile and flexible, and the user can make any combination of the structure and the extractive unit according to the needs.

●Busbar is protected by high strength flame retardant and high insulation strength plastic function plate. It has the function of anti arc fault, and the horizontal busbar is installed vertically, effectively reducing electrical stress and thermal stress.

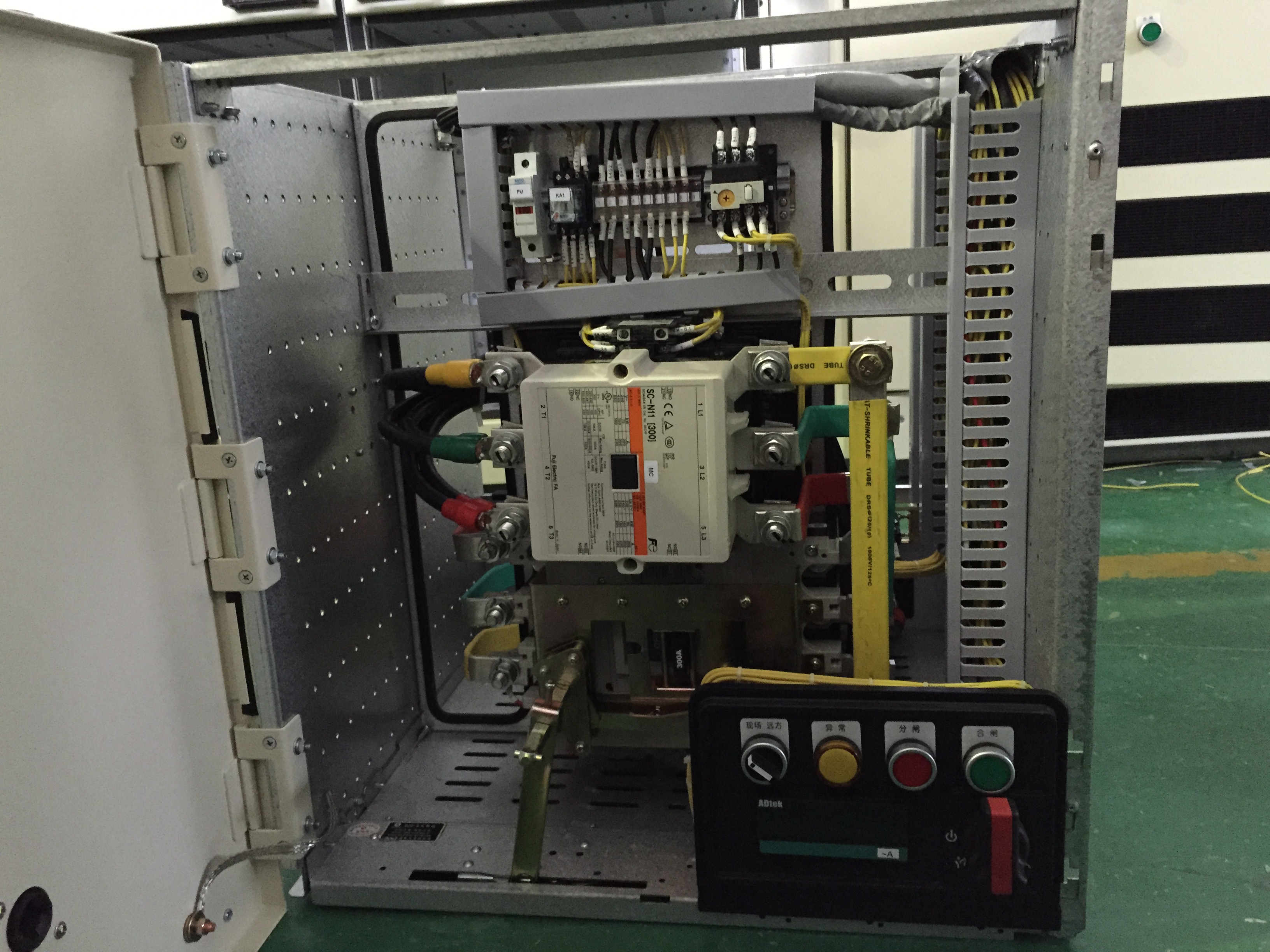

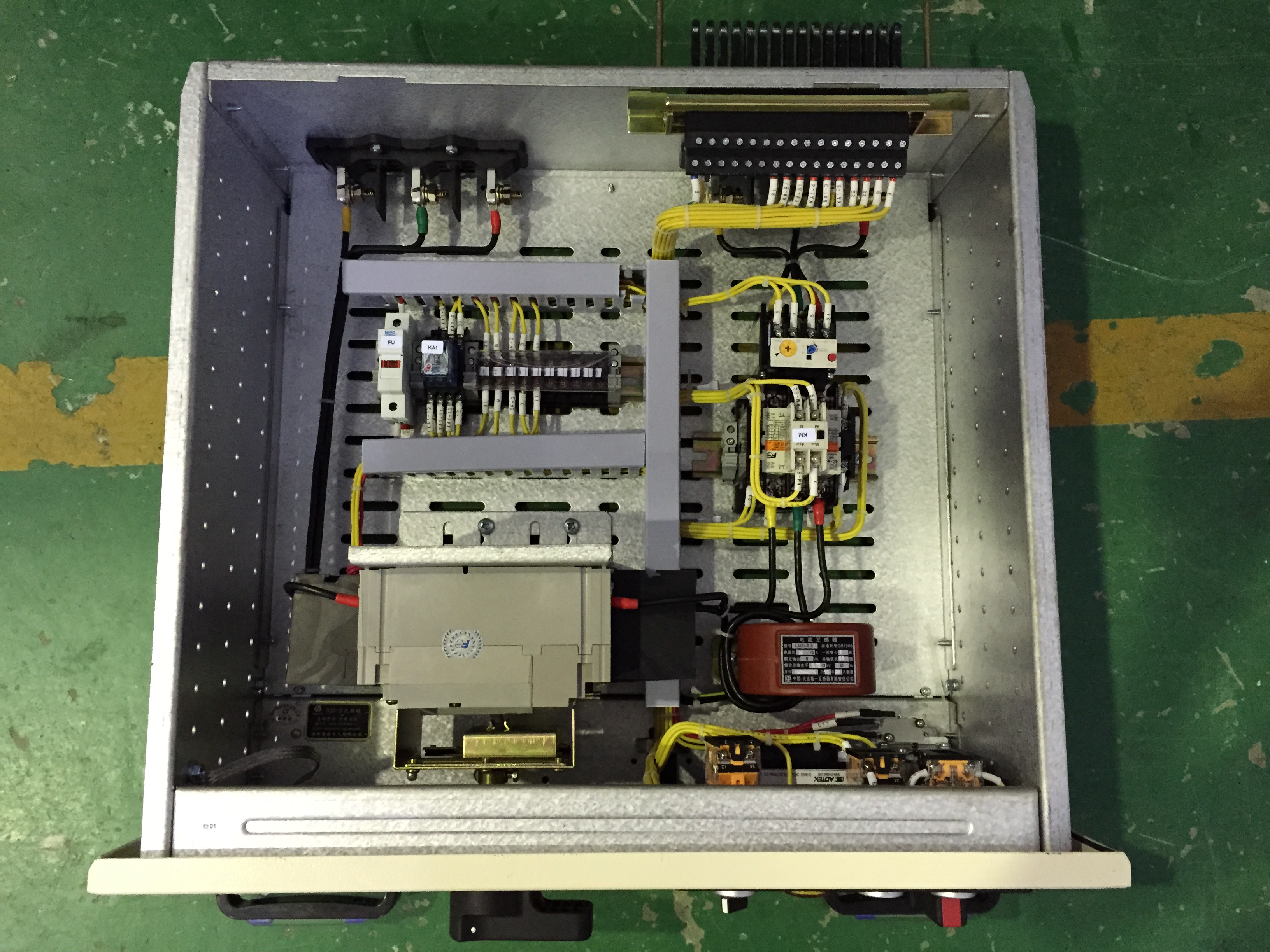

●MNS drawer has 8E/2, 8E, 16E, 24E house specification (1E=25mm). The drawer has the connection position, the test position, the disconnection position, the moving position and the separation position. Each drawer and switch are equipped with a mechanical interlocking device. When the switch is broken, the drawer can be drawn or inserted. When the switch is in the closing position, the drawer can not be drawn or inserted. In order to prevent unpermissible operation, the operating mechanism can use a padlock to lock the switch in the split position. The drawer of the same function unit can be exchanged conveniently. Each function unit drawer has 16-32 pairs of auxiliary contacts, which can meet the needs of remote operation control, electric metering and automatic monitoring system with computer interface.


◇technical parameter:

Serial number

Name

Company

numerical value

 1

Rated working voltage

 V

 380/690

 2

Rated insulation voltage

 V

 660/1000

 3

Rated frequency

 Hz

 50

 4

The main busbar rated current

 A

 ≤6300

 5

The main busbar rated short-time withstand current(1S)

 kA

 ≤100

 6

Rated peak tolerance current

  kA

220

 7

Rated current of distribution bus

 A

 ≤1250

 8

Rated short-time tolerance current of distribution bus(1S)

  kA

 ≤50

 9

Peak tolerance current of distribution bus

  kA

 105

 10

Auxiliary circuit insulation voltage

 V

 660

 11

Rated impact tolerance voltage

 kV

 6

 12

Shell protection grade

 IP

 to IP40

 13

Electrical gap

 mm

≥ 8

 14

Creeping distance

 mm

 ≥12.5

15

Overvoltage category



Ⅲa

16

Class of pollution



3


◇Product size:

nucha

width(mm)

height(mm)

depth(mm)

MNS

600、800、1000

2200

     800、1000
